Mercury and Assets

Are mercury concentrations in hair related to household socioeconomic position, as measured by assets?

library(tidyverse)
library(tidymodels)
library(readr)
mercury <- readr::read_csv("mercury_reg.csv")
mercury <-
  mercury %>%
  # scale() subtracts the mean and divides by the SD to make the units "standard deviations" like a z-score
  mutate(assets_sc=scale(SESassets)) %>%
  #another variable we may use later
  mutate(form_min_sc=scale(FM_buffer)) %>%
  #so I don't have to remember coding
  mutate(sex,sex_cat=ifelse(sex==1,"Male","Female")) %>%
  mutate(native,native_cat=ifelse(native==1,"Native","Non-native"))

Goal: Predict mercury from assets

$$\widehat{y}_{i} = \widehat{\beta}_0 + \widehat{\beta}_1 \times x_{i}$$ Here $y_i$ represents log hair mercury for subject $i$, and $x_i$ represents standardized household income.

Step 1: Specify model

linear_reg()

#> Linear Regression Model Specification (regression)
#>
#> Computational engine: lm

Step 2: Set model fitting engine

linear_reg() %>%
  set_engine("lm") # lm: linear model

#> Linear Regression Model Specification (regression)
#>
#> Computational engine: lm

Step 3: Fit model & estimate parameters

... using formula syntax

linear_reg() %>%
  set_engine("lm") %>%
  fit(lhairHg ~ assets_sc, data = mercury)

#> parsnip model object
#>
#> Fit time:  1ms
#>
#> Call:
#> stats::lm(formula = lhairHg ~ assets_sc, data = data)
#>
#> Coefficients:
#> (Intercept)    assets_sc
#>      0.2795      -0.3577

A closer look at model output

#> parsnip model object
#>
#> Fit time:  1ms
#>
#> Call:
#> stats::lm(formula = lhairHg ~ assets_sc, data = data)
#>
#> Coefficients:
#> (Intercept)    assets_sc
#>      0.2795      -0.3577

A tidy look at model output

linear_reg() %>%
  set_engine("lm") %>%
  fit(lhairHg ~ assets_sc, data = mercury) %>%
  tidy()

#> # A tibble: 2 × 5
#>   term        estimate std.error statistic  p.value
#>   <chr>          <dbl>     <dbl>     <dbl>    <dbl>
#> 1 (Intercept)    0.280    0.0213      13.1 7.49e-38
#> 2 assets_sc     -0.358    0.0216     -16.5 3.90e-58

Slope and intercept

• Slope: For each standard deviation increase in assets, the log hair mercury level is expected to be lower, on average, by 0.3577 log ppm.

• perhaps not a very useful statement given the scale

• Intercept: Individuals with household assets at the mean level (assets_sc=0) are expected to have hair mercury concentrations of 0.2795 log ppm, on average

  • Remember assets_sc was standardized, so assets_sc=0 does not mean "no assets" but instead means "average assets" as it corresponds to an assets z-score of 0

Working with logs

• Subtraction and logs: $log(a) − log(b) = log(a / b)$
• Natural logarithm: $e^{log(x)} = x$
• We can use these identities to "undo" the log transformation

Interpreting the slope

The slope coefficient for the log transformed model is -0.3577, meaning the log mercury difference between people whose household incomes are one SD apart is predicted to be -0.3577 log ppm.

For each additional increase in scaled assets, hair mercury content is expected to be ___ , on average, by a factor of ___.

$$log(\text{hair Hg for assets x+1}) - log(\text{hair Hg for assets x}) = -0.3577$$

$$log\left(\frac{\text{hair Hg for assets x+1}}{\text{hair Hg for assets x}}\right) = -0.3577$$

$$e^{log\left(\frac{\text{Hg for assets x+1}}{\text{Hg for assets x}}\right)} = e^{-0.3577}$$

$$\frac{\text{Hg for assets x+1}}{\text{Hg for assets x}} \approx 0.70$$

For each SD increase in assets, the hair Hg is expected to be lower, on average, by a factor of 0.70.

Correlation does not imply causation

Remember this when interpreting model coefficients

Linear model with a single predictor

• We're interested in $\beta_0$ (population parameter for the intercept) and $\beta_1$ (population parameter for the slope) in the following model:

$$y_{i} = \beta_0 + \beta_1~x_{i}+\varepsilon_i$$ where $\varepsilon$ represents random error around our mean

• Tough luck, you can't have them...
• So we use sample statistics to estimate them, using the notation $b$ or $\widehat{\beta}$ to distinguish our estimates from the true parameters $\beta$

$$\widehat{y}_{i} = b_0 + b_1~x_{i}$$ or $$\widehat{y}_i = \widehat{\beta}_0 + \widehat{\beta}_1~x_i$$

Least squares regression

• The regression line minimizes the sum of squared residuals.
• If $e_i = y_i - \hat{y}_i$, then, the regression line minimizes $\sum_{i = 1}^n e_i^2$.

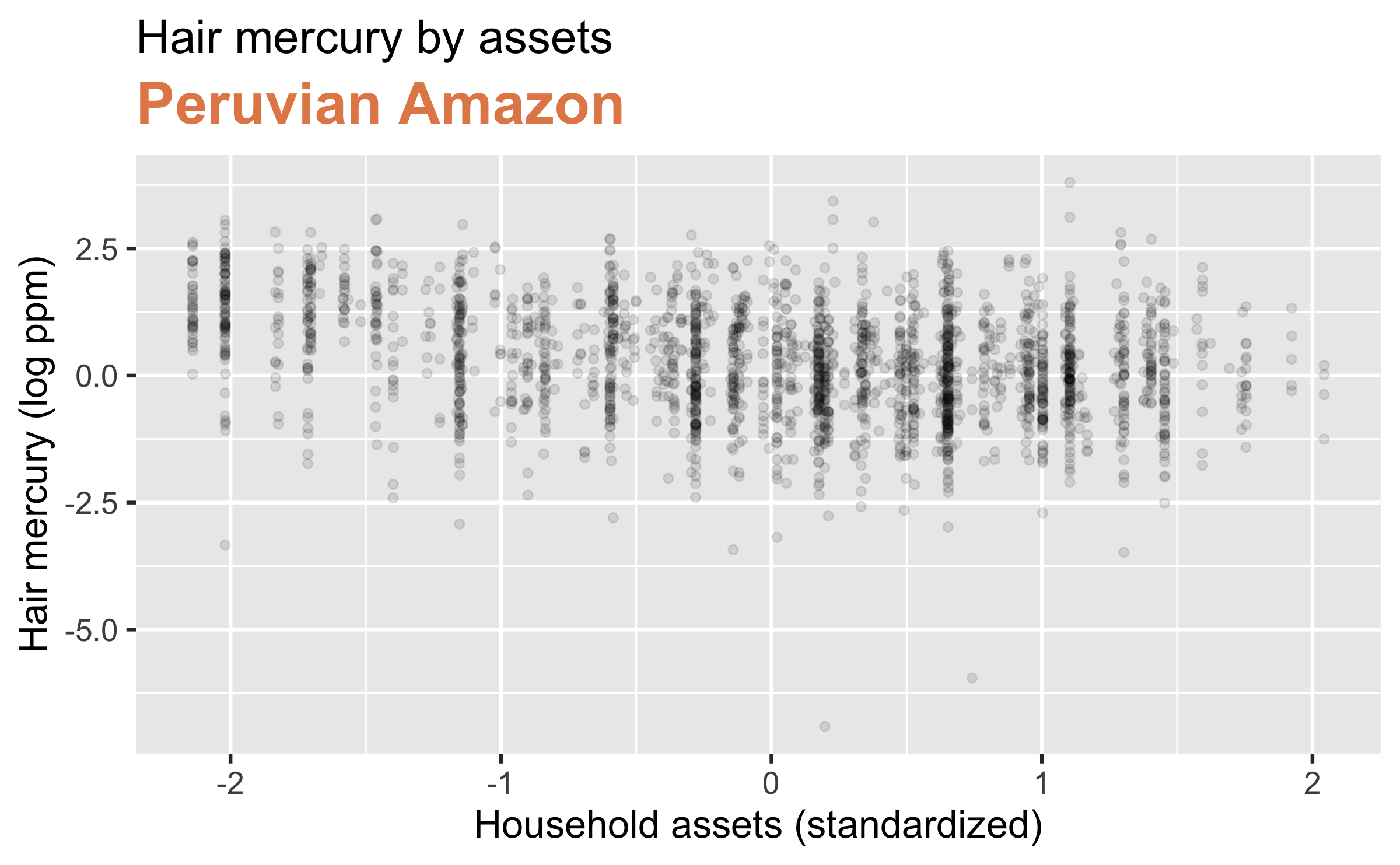

Visualizing residuals

Visualizing residuals (cont.)

Visualizing residuals (cont.)

Properties of least squares regression

• The regression line goes through the center of mass point, the coordinates corresponding to average $x$ and average $y$, $(\bar{x}, \bar{y})$:

$$\bar{y} = b_0 + b_1 \bar{x} ~ \rightarrow ~ b_0 = \bar{y} - b_1 \bar{x}$$

• The slope has the same sign as the correlation coefficient: $b_1 = r \frac{s_y}{s_x}$
• The sum of the residuals is zero: $\sum_{i = 1}^n e_i = 0$
• The residuals and $x$ values are uncorrelated

Aside: Correlation Coefficient

The correlation coefficient describes the linear relationship between $x$ and $y$ on the standard deviation scale.

cor(mercury$lhairHg,mercury$assets_sc,use="complete.obs")

#>           [,1]
#> [1,] -0.326132

Here, for each one SD increase in assets, we expect a -0.33 SD increase (so thus a 0.33 decrease) in standard deviations of log hair mercury.

Categorical predictor with 2 levels

#> # A tibble: 2,308 × 3
#>    lhairHg assets_sc[,1] native_cat
#>      <dbl>         <dbl> <chr>
#>  1  0.676         -0.837 Non-native
#>  2  0.0908         0.197 Non-native
#>  3  1.67          -0.280 Non-native
#>  4  0.450         -0.280 Non-native
#>  5  0.704         -0.280 Non-native
#>  6 -0.512         -0.280 Non-native
#>  7 -0.125          0.826 Non-native
#>  8 -0.103          0.826 Non-native
#>  9  0.351         -1.27  Non-native
#> 10  0.0444        -1.27  Non-native
#> 11  0.662         -0.359 Non-native
#> 12  1.01           1.29  Non-native
#> 13 -0.149          1.29  Non-native
#> 14  0.881          0.517 Non-native
#> 15  1.51           0.517 Non-native
#> 16  0.328         -0.658 Non-native
#> 17  0.0553         0.533 Non-native
#> 18  0.768          1.29  Non-native
#> 19  0.431          1.30  Non-native
#> 20  1.55           1.30  Non-native
#> # … with 2,288 more rows

Mercury & native community relationship

linear_reg() %>%
  set_engine("lm") %>%
  fit(lhairHg ~ native_cat, data = mercury) %>%
  tidy()

#> # A tibble: 2 × 5
#>   term                 estimate std.error statistic   p.value
#>   <chr>                   <dbl>     <dbl>     <dbl>     <dbl>
#> 1 (Intercept)              1.12    0.0416      26.9 4.97e-139
#> 2 native_catNon-native    -1.11    0.0476     -23.2 2.94e-107

Mercury and native communities

Define $\text{Non-native}_i$=1 if non-native community and 0 otherwise.

$$\widehat{y_i} = 1.12 - 1.11~\text{Non-native}_i$$

• Slope: Residents of non-native communities, on average, are expected to have Hg concentrations that are -1.11 log ppm lower, on average, than residents of native communities. Alternatively, the hair Hg is expected to be lower, on average, by a factor of $e^{-1.11}=0.33$ among residents of non-native communities.

  • Compares baseline level (Native) to the other level (Non-native)

• Intercept: Individuals living in native communities (Non-native=0) are expected to have hair mercury exposures of 1.12 log ppm.

Relationship between mercury and individual community

linear_reg() %>%
  set_engine("lm") %>%
  fit(lhairHg ~ community, data = mercury) %>%
  tidy()

#> # A tibble: 23 × 5
#>    term                        estimate std.error statistic  p.value
#>    <chr>                          <dbl>     <dbl>     <dbl>    <dbl>
#>  1 (Intercept)                    0.614    0.0644      9.54 3.55e-21
#>  2 communityBoca Isiriwe          1.20     0.159       7.56 5.77e-14
#>  3 communityBoca Manu             0.833    0.129       6.43 1.56e-10
#>  4 communityCaychihue            -1.10     0.132      -8.36 1.09e-16
#>  5 communityChoque               -0.778    0.117      -6.68 3.04e-11
#>  6 communityDiamante              1.06     0.109       9.67 1.00e-21
#>  7 communityHuepetuhe            -0.694    0.0732     -9.48 5.96e-21
#>  8 communityIsla de los Valles    1.12     0.245       4.57 5.18e- 6
#>  9 communityMasenawa              1.20     0.401       3.00 2.74e- 3
#> 10 communityPalotoa Teparo        0.350    0.148       2.36 1.82e- 2
#> # … with 13 more rows

Dummy or indicator variables

#> # A tibble: 23 × 5
#>    term                        estimate std.error statistic  p.value
#>    <chr>                          <dbl>     <dbl>     <dbl>    <dbl>
#>  1 (Intercept)                    0.614    0.0644      9.54 3.55e-21
#>  2 communityBoca Isiriwe          1.20     0.159       7.56 5.77e-14
#>  3 communityBoca Manu             0.833    0.129       6.43 1.56e-10
#>  4 communityCaychihue            -1.10     0.132      -8.36 1.09e-16
#>  5 communityChoque               -0.778    0.117      -6.68 3.04e-11
#>  6 communityDiamante              1.06     0.109       9.67 1.00e-21
#>  7 communityHuepetuhe            -0.694    0.0732     -9.48 5.96e-21
#>  8 communityIsla de los Valles    1.12     0.245       4.57 5.18e- 6
#>  9 communityMasenawa              1.20     0.401       3.00 2.74e- 3
#> 10 communityPalotoa Teparo        0.350    0.148       2.36 1.82e- 2
#> # … with 13 more rows

• When the categorical explanatory variable has many levels, they're encoded to dummy or indicator variables
• Each coefficient describes the expected difference between log mercury concentrations in that particular community compared to the baseline community

Categorical predictor with 3+ levels

etc. for the other communities. Note Boca Colorado, the referent community, =0 for all vars

Relationship between mercury and community

#> # A tibble: 23 × 5
#>    term                        estimate std.error statistic  p.value
#>    <chr>                          <dbl>     <dbl>     <dbl>    <dbl>
#>  1 (Intercept)                    0.614    0.0644      9.54 3.55e-21
#>  2 communityBoca Isiriwe          1.20     0.159       7.56 5.77e-14
#>  3 communityBoca Manu             0.833    0.129       6.43 1.56e-10
#>  4 communityCaychihue            -1.10     0.132      -8.36 1.09e-16
#>  5 communityChoque               -0.778    0.117      -6.68 3.04e-11
#>  6 communityDiamante              1.06     0.109       9.67 1.00e-21
#>  7 communityHuepetuhe            -0.694    0.0732     -9.48 5.96e-21
#>  8 communityIsla de los Valles    1.12     0.245       4.57 5.18e- 6
#>  9 communityMasenawa              1.20     0.401       3.00 2.74e- 3
#> 10 communityPalotoa Teparo        0.350    0.148       2.36 1.82e- 2
#> # … with 13 more rows
